SL320
Strong + Streamlined

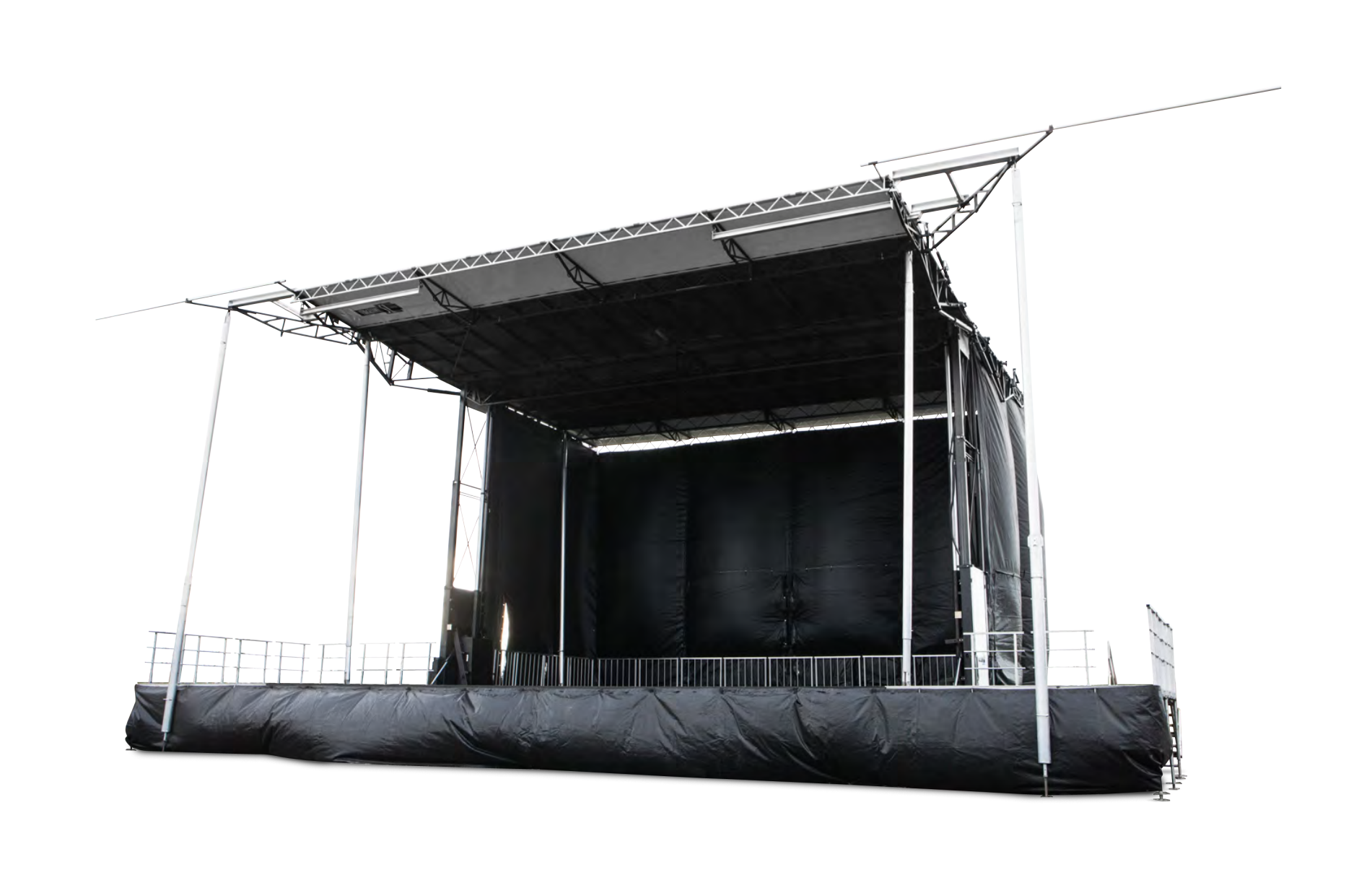

The SL320 is the largest SL-series mobile stage in our inventory. Built for high-energy events, it combines a generous performance area with serious rigging power and rapid setup—ideal for concerts, festivals, and large-scale productions.
Technical SpecsSpecifications
.01
Length + Depth
40’ x 40’
Up to 64’ x 40’ with extension platforms
.02
Height from Ground
3'6"–6'
.03
Integrated Roof Height from Deck (Inclined roof)
22′4″–25′7″
.04
Overhead Clearance Once Built
32′4″
.05
Flown Sound Capacity
3,000 lbs per side
Multiple rigging points available to accommodate various audio configurations. While some points are rated up to 2,000 lbs and others up to 4,000 lbs, most standard setups comfortably support 3,000 lbs per side—making the SL320 a reliable choice for flown PA systems.
.06
Roof Load Bearing Capacity
26,000 lb
.07
Min. Base Stage Set-Up Time
3 hrs
.08
Min. Number of Stage Technicians
4
1 certified technician + 3–4 stagehands
.09
Mode of Transportation
1 tractor trailer
.10
Required Overhead Clearance for Travel
13'5"
.11
Gust Wind Resistance
77 mph w/ windwalls; 115 mph w/out windwalls
.12
Wind Wall Coverage
Full-Width Back Wall in Vinyl and Full-Depth Side Walls in Vinyl
Full covered side wing
